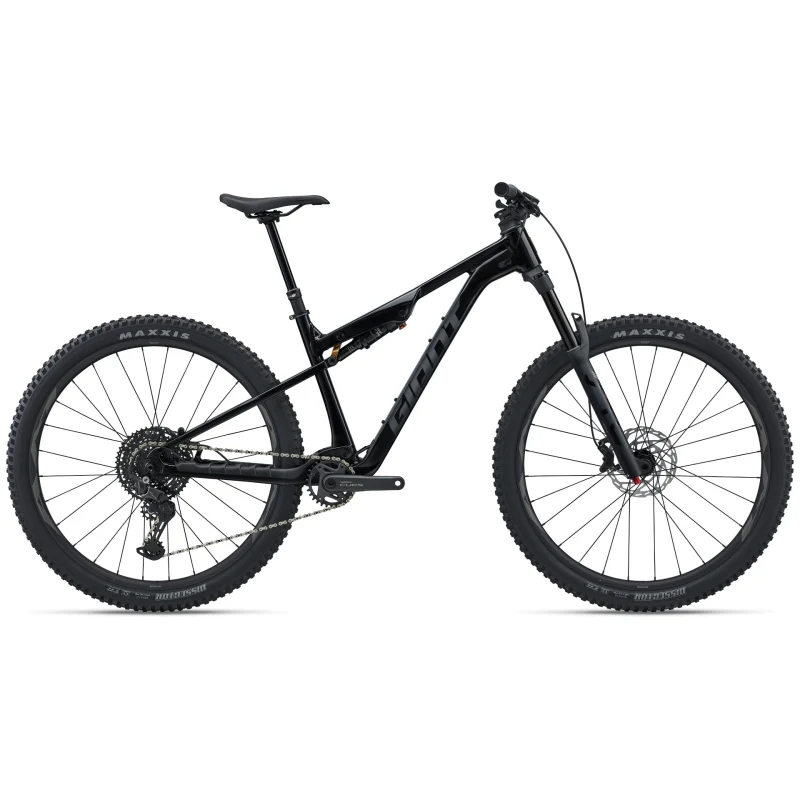

TAME THE TRAIL

Nothing beats that feeling of being one with the trail. Stance helps you tap into it, delivering smooth control with a new aluminium frameset and 130mm of FlexPoint rear suspension featuring a new semi-integrated design. Paired with a 140mm fork and trail-ready features, including a dropper post, it's everything you need to reach the next level.

The next-generation Stance introduces a new ALUXX aluminium frameset with a semi-integrated horizontal shock that's repositioned under the top tube. The frame is complemented by new Crest suspension components including a new rear shock and 140mm-travel fork. The TRA WheelSystem features Wide Guard rim technology for added puncture protection and control. A UDH interface for modern drivetrain performance and a Contact Switch AT dropper seatpost complete the trail-ready setup.



KEY PERFORMANCE FACTORS

Trail-Friendly Control

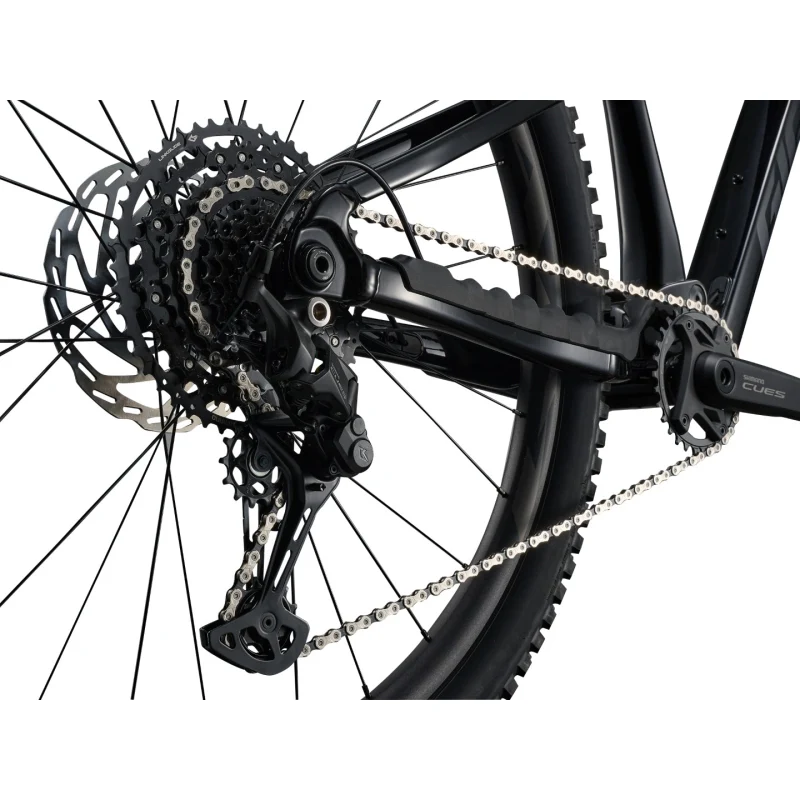

Refined trail geometry with a slacker head tube and higher stack creates a stable, confident ride position. The new Contact Switch AT dropper post and long-post compatibility (up to 200mm) gives you room to move on descents. A wide-range 1X drivetrain, powerful 4-piston brakes, and tubeless tyres deliver simple shifting, precise speed control and planted traction-so you don't just ride the trail, you master it.

Trail-Tuned Suspension
Re-engineered FlexPoint rear suspension with a Crest FloTrac TR shock delivers active, consistent performance through 130mm of travel. The single-pivot system boasts the lowest rear-triangle deformation in its class, while new kinematics with a tailored shock spring curve deliver a more linear wheel path. The result is a smooth, predictable feel with unbeatable traction and mid-stroke support. Up front, the dual-air Giant STL 34 suspension fork smooths out rocks and roots, and Unified Suspension Setup makes it easy to dial in your settings.

Integrated Chassis
A new hydroformed ALUXX aluminium chassis is engineered for strength, stiffness, and low weight. Seamless shock integration enhances frame stiffness and delivers a more connected ride feel. A smooth cockpit-to-frame transition with integrated spacers keeps the front end clean, while flush cable guides help ensure quiet performance. Convertible internal/external routing adds adaptability, resulting in a sleek, precise, trail-ready frame that rides as sharp as it looks.


TECHONOLOGIES

ALUXX ALUMINIUM
State-of-the-art aluminium material delivers best-in-class strength-to-weight ratio. The frameset also features double-butted tubing, FluidForm shaping, and innovative welding technologies including Smooth Weld to give it a highperformance ride quality.

FLEXPOINT SUSPENSION
ingle-pivot suspension system with 130mm of smooth, active rear travel for greater control on technical trails. Updated design results in less rear triangle deformation and higher anti-rise performance for greater chassis stability and balanced geometry under braking forces.

CREST FLOTRAC TR SHOCK
A fully tunable rear shock that's engineered to complement FlexPoint suspension kinematics. Featuring Triple Flow Path technology, it delivers a wide range of adjustability on spring and damping for predictable traction control without any pre-set limitations.

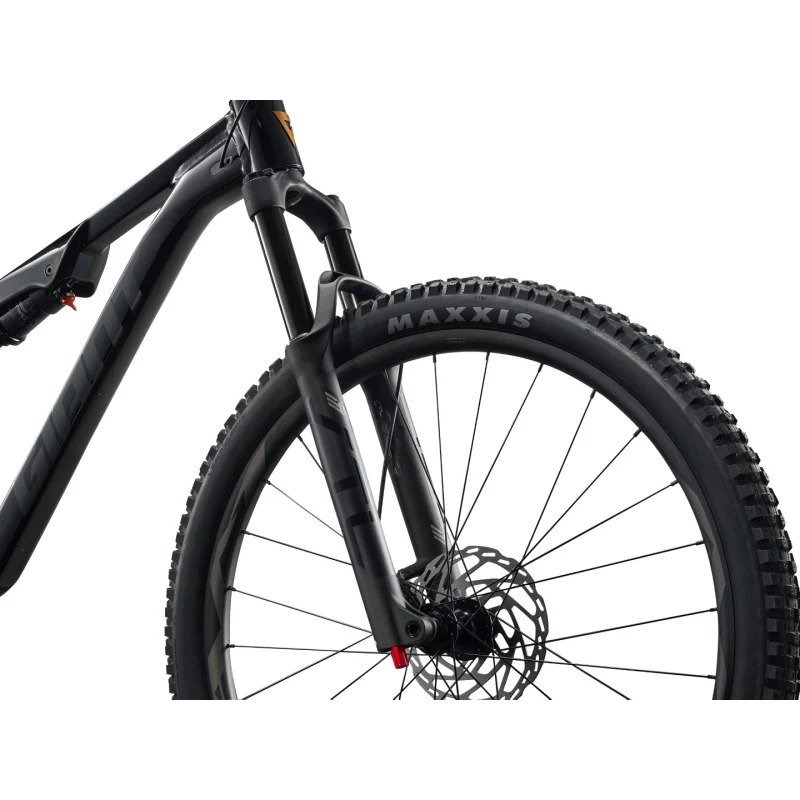

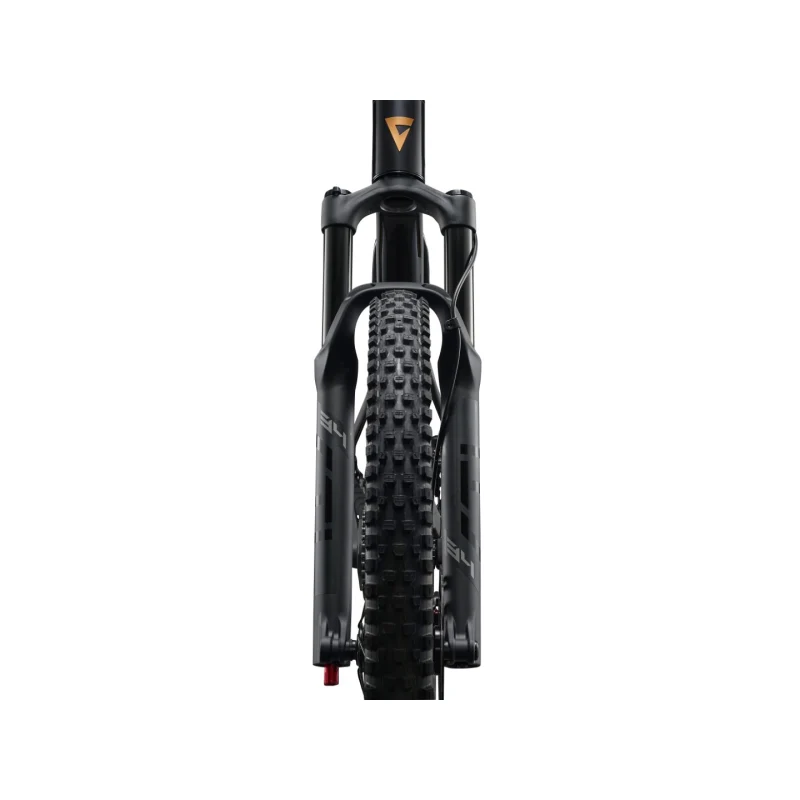

STL 34 SUSPENSION FORK
Designed for trail riding, the STL 34 uses a Twin Air spring system to deliver a sensitive, controlled, and highly tunable feel across a wide range of terrain. From early stroke compliance to supported end-stroke control, it tracks the ground and manages impacts for a smoother, more confident ride.

TRA WHEELSYSTEM
A hollow 5mm wide rim edge adds strength and durability while reducing the risk of pinch flats. The design allows you to run lower tyre pressure for more traction and control. Lightweight alloy rims and a 72-tooth hub help maximize power transfer.

OVERDRIVE
Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/2' lower and 1 1/2' upper) and tapered steerer tube (1 1/2' lower and 1 1/8' upper) work in conjunction to provide optimal steering stiffness.

THREADED BOTTOM BRACKET

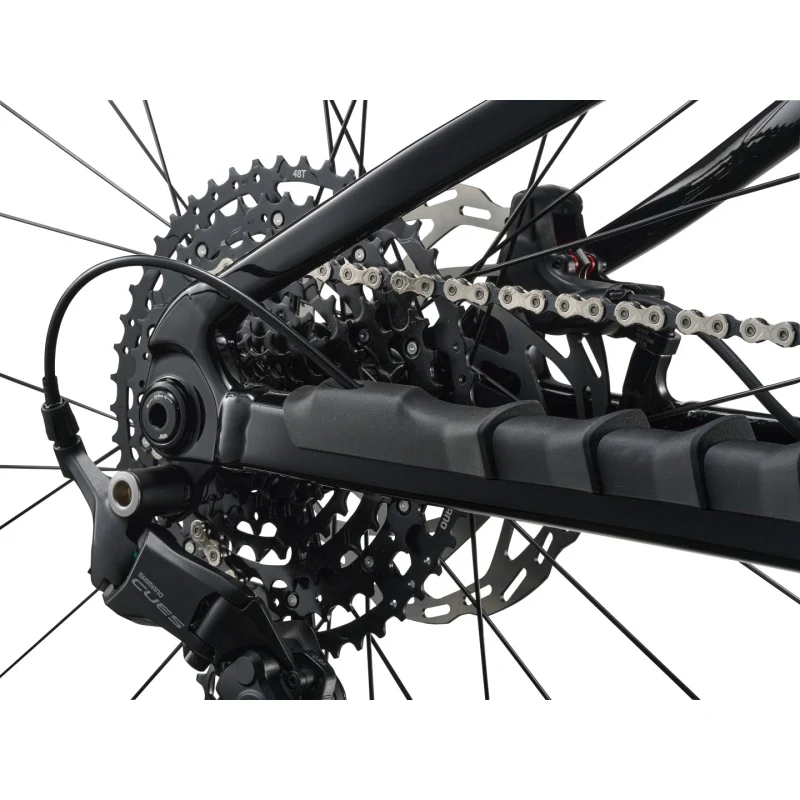

An oversized bottom bracket area features a threaded, 73mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.

29ER TRAIL GEOMETRY
Designed for confident trail riding, a slacker head angle (now 65 degrees) and higher stack height (now 615mm) delivers greater control and more confident handling on technical terrain.

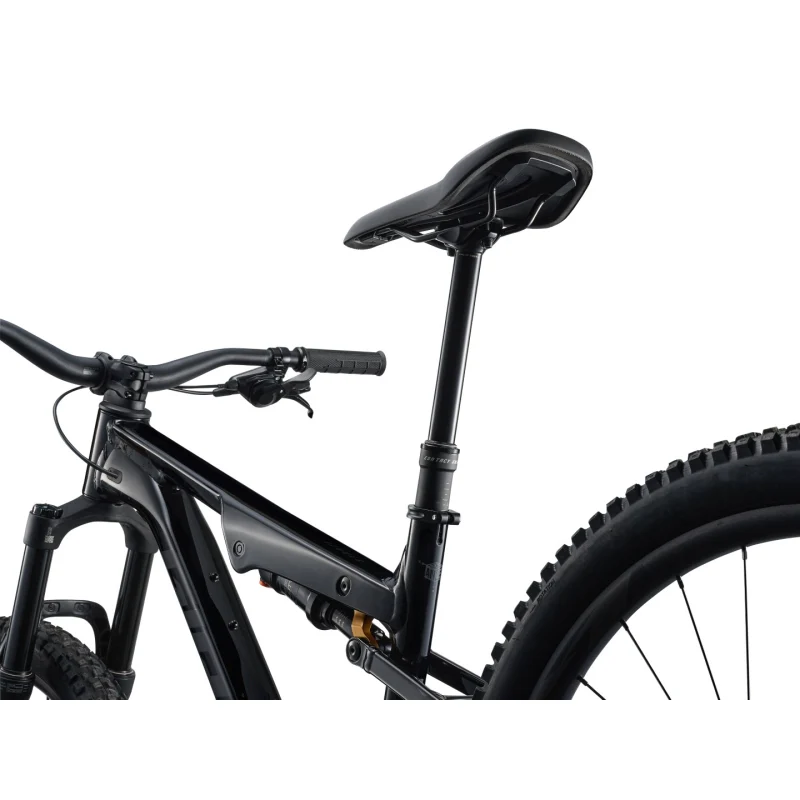

DROPPER SEATPOST
Contact Switch AT dropper post lets you quickly lower your saddle for descents and technical sections. The frame is designed to allow longer posts (200mm for L and XL sizes), so you have more room to move and greater control.

UNIFIED SUSPENSION SETUP
Optimal air pressure and damper setting recommendations, based on rider weight, are predetermined and presented in easy-to-read graphic displays on the bike itself-one on the rear shock and one on the fork-and also online.

CLEAN COCKPIT
Custom headset spacers and top cap designed to match the head tube shape for a clean outlook and seamless connection between the frameset and the handlebar/stem. The head tube and headset offer convertible cable routing that allows for internal or external routing.

INTEGRATED FRAME KIT Cable guides are designed to be flush with the frame, creating a streamlined look, quiet performance, and easy servicing. The frame also features integrated protection on the chainstay and underneath the down tube.
