THE STP 20 IS A LIGHTWEIGHT, CONFIDENCE-BUILDING BIKE FOR RIDERS DISCOVERING OFF-ROAD FUN. ITS STABLE GEOMETRY, LOW STAND-OVER HEIGHT, AND YOUTH-SPECIFIC COMPONENTS MAKE IT IDEAL FOR DEVELOPING SKILLS ON PUMP TRACKS, DIRT JUMPS, OR LOCAL TRAILS.


KEY PERFORMANCE FACTORS

BUILT TO LAST
The ALUXX-grade aluminium frame combines durability and low weight, giving young riders a solid platform to ride, learn, and progress. The bike is equipped with a 63mm suspension fork for extra comfort and control on rougher terrain.

YOUTH-TUNED CONTROL
Designed for riders 110-130 cm tall, the STP 20 features youth-specific components, including 105 mm short cranks, a Liv Grit Core Lite saddle, and smaller-diameter handlebars for an optimal fit. Youth-tuned hydraulic disc brakes provide smooth, predictable stopping power, while the low bottom bracket height ensures a stable, balanced feel on all terrain.

TRICK-READY HANDLING
The 20-inch TRA 2 WheelSystem with Wide Guard rim technology provides durability and traction for playful, confident riding. Front and rear thru-axles add steering precision and stability, while the short rear center keeps handling nimble and easy to manoeuvre.

HIGHLIGHTS

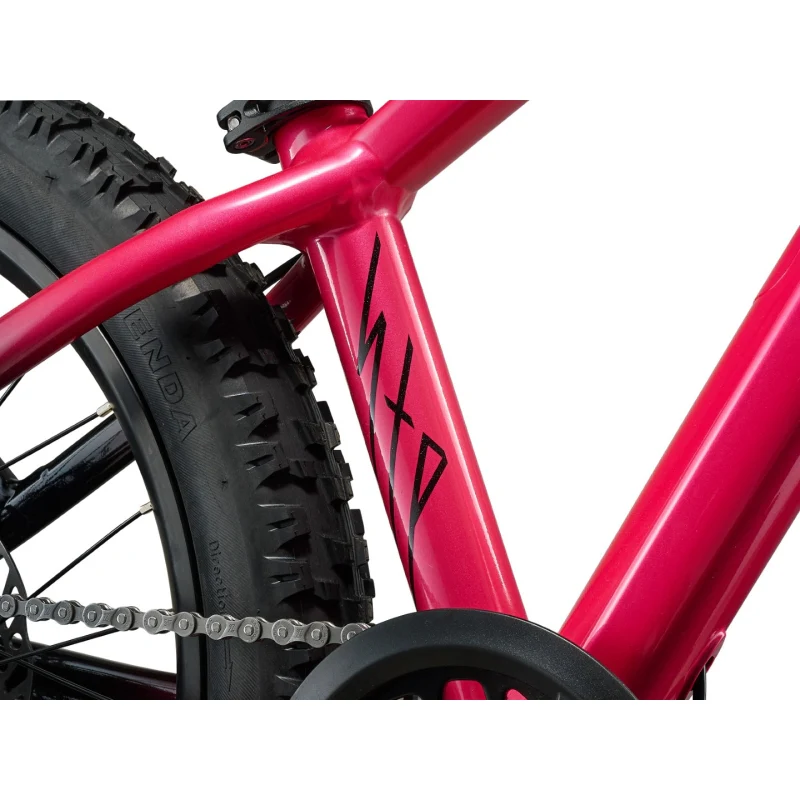

ALUXX ALUMINIUM
Built from state-of-the-art aluminium material, every Liv STP frame is strong, lightweight, and made to last. Using the same engineering techniques found on our adult performance bikes, the frame delivers a smooth, durable ride that keeps up as riders grow and progress.

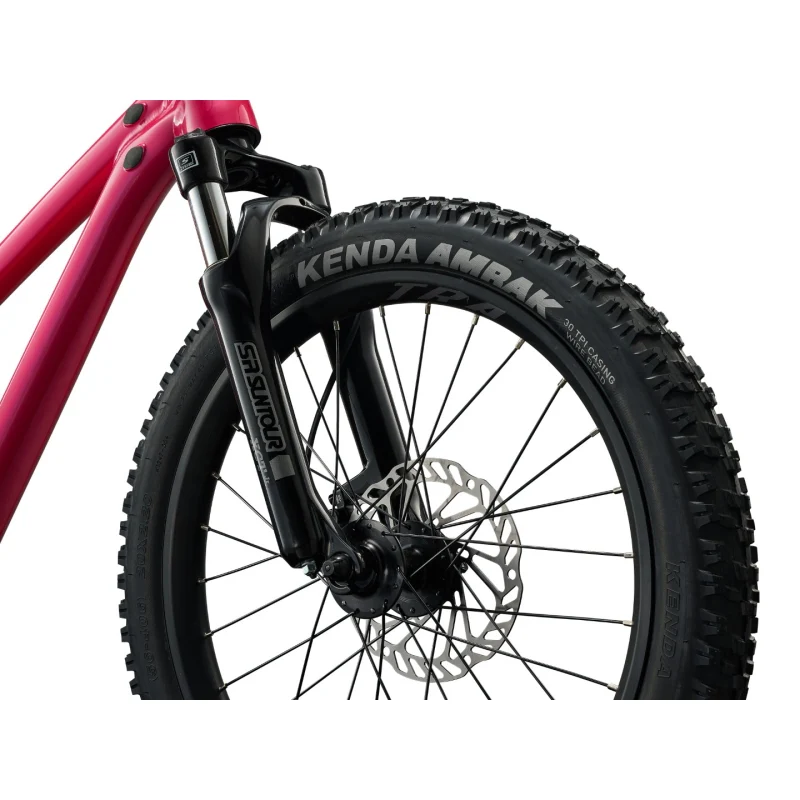

SUSPENSION FORK
The STP 20 FS comes with a 63mm suspension fork for added comfort and traction on rough terrain.

20-INCH WHEELS
The 20-inch Giant TRA 2 WheelSystem with Wide Guard rim technology combines lightweight performance with rim strength and puncture protection.

2.4 INCH TYRE CLEARANCE
Allows for wide, high-volume tyres that deliver extra grip and cushioning, giving riders more control and stability through corners, jumps, and rough terrain.

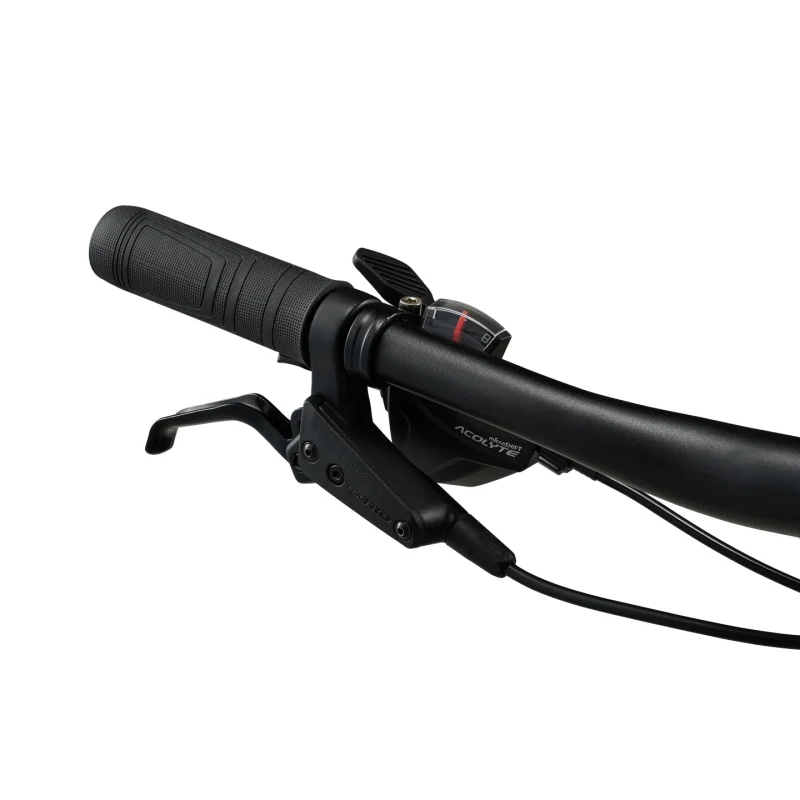

YOUTH-OPTIMIZED SHIFTERS
MicroShift Acolyte levers offer intuitive controls-the index finger for a harder gear, the thumb for an easier gear. A clear gear indicator helps riders see their selection at a glance, building confidence and understanding with every ride.

YOUTH-OPTIMISED BRAKES
Hydraulic brakes with shorter travel brake levers are tuned with lighter modulation compared to adult brakes. This results in greater control and traction on dirt tracks and trails.

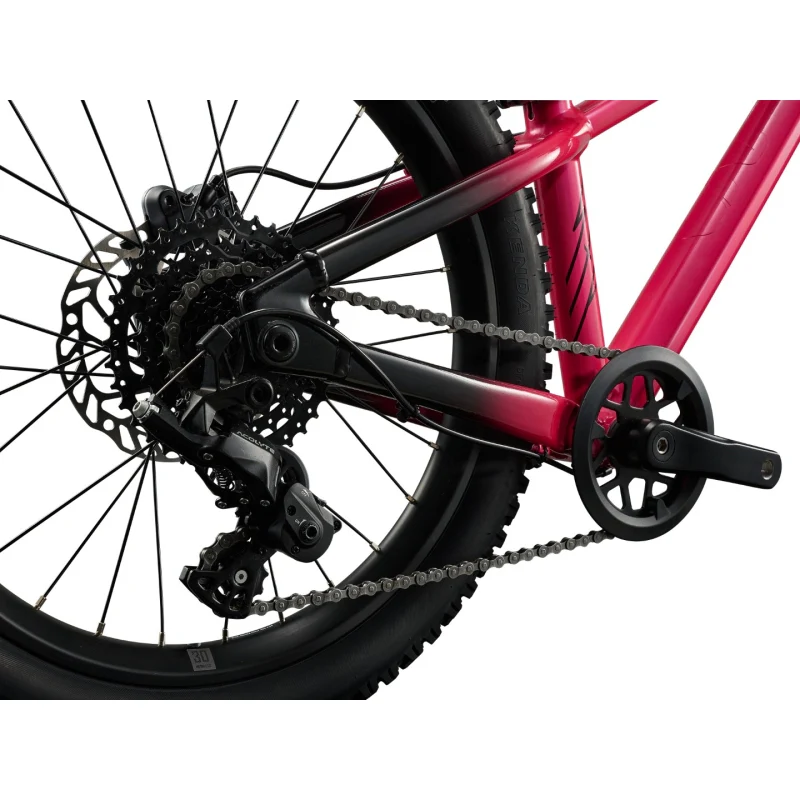

YOUTH-OPTIMISED DRIVETRAIN
A 1X drivetrain featuring shorter 105mm cranks, a 30-tooth chainring, and a wide 11-38 gear range helps young riders conquer hilly terrain with optimal pedalling cadence.

LIV GRIT CORE LITE SADDLE
A narrow 125mm saddle width delivers optimal positioning and fit to help young riders tackle longer rides with greater comfort.

INTERNAL CABLE ROUTING
Derailleur, brake and dropper post cables are routed internally through integrated ports, saving weight while creating a cleaner look and better performance.

SPEC & GEOMETRY - MY26 LIV STP 20
