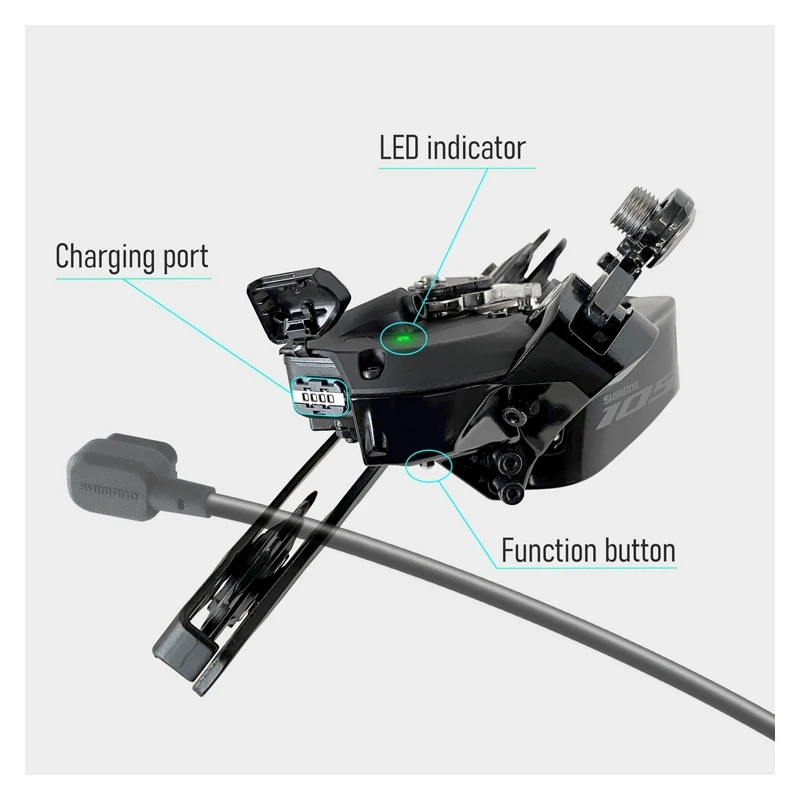

Wide 36T-compatible 12-speed Di2 rear derailleur. Receiving the wireless shifting signal from the shift lever, the SHIMANO 105 rear derailleur completes a shift in the blink of an eye with its high-performance motor and optimized link structure. This is the hub of the Di2 system, with the charging port, indicator LEDs, adjustment switches and more integrated into a compact package. A low-profile design reduces damage from contact and falls.


TECHNICAL SPECIFICATIONS

Material: Aluminum
Execution: 12-speed, long cage
Compatibility switching system: 12-speed Shimano 105 Di2 components
Total capacity: 41 teeth
Max. difference in front: 16 teeth (difference between smallest and largest chain ring)
Max. largest sprocket: 36 teeth
Min. largest sprocket: 34 teeth
Max. smallest sprocket: 11 teeth
Min. smallest sprocket: 11 teeth

Pulley
Teeth: 11
Sunken type alley screw: Yes

Di2 connectivity wireless
Di2 shifting
Bluetooth LE custom (*1) Adjust mode information

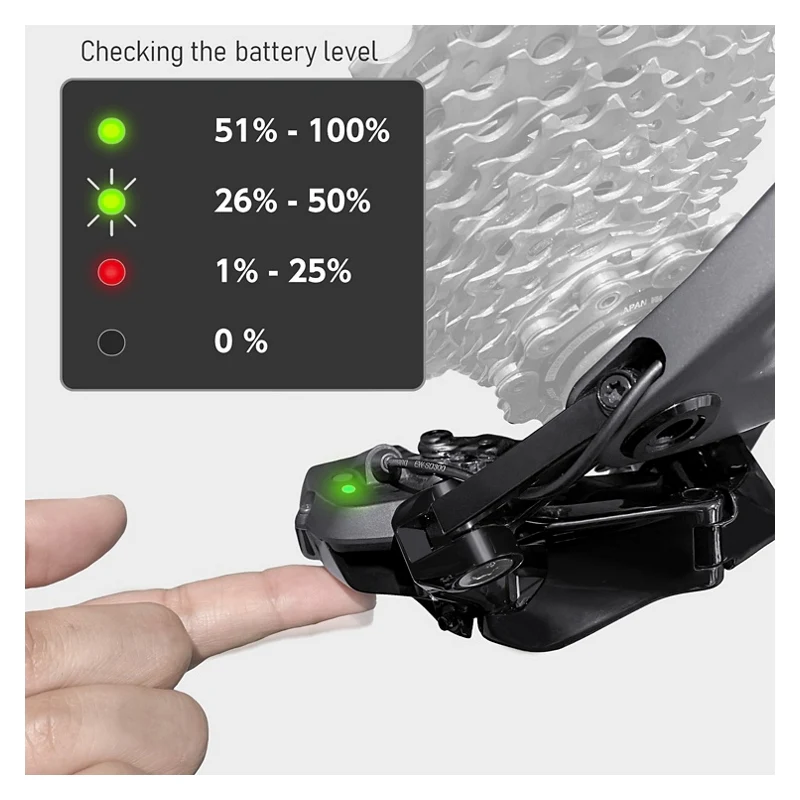

Bluetooth LE custom (*1) Di2 battery level
Bluetooth LE custom (*1) Gear position
Bluetooth LE custom (*1)|SHIMANO E-BIKE SYSTEMS data items (*3)
Bluetooth LE custom (*1)|Compatible with E-TUBE RIDE

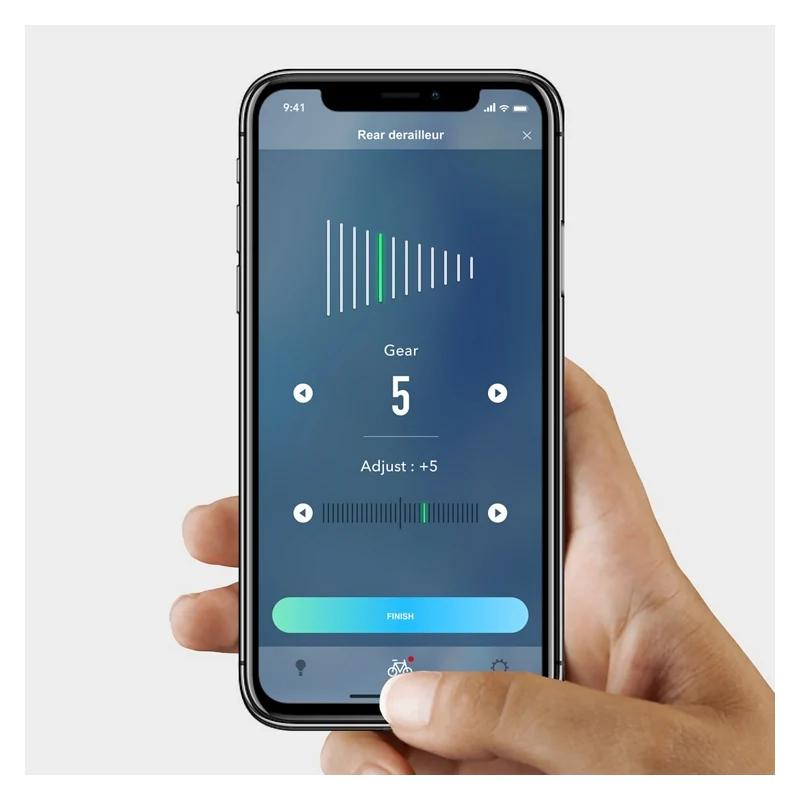

Bluetooth LE custom (*1)|Compatible with E-TUBE PROJECT
ANT private (*2) Adjust mode information
ANT private (*2)|Di2 battery level
ANT private (*2)|Gear position
ANT private (*2) SHIMANO E-BIKE SYSTEMS data items (*3)

Charging cable: EW-EC300
