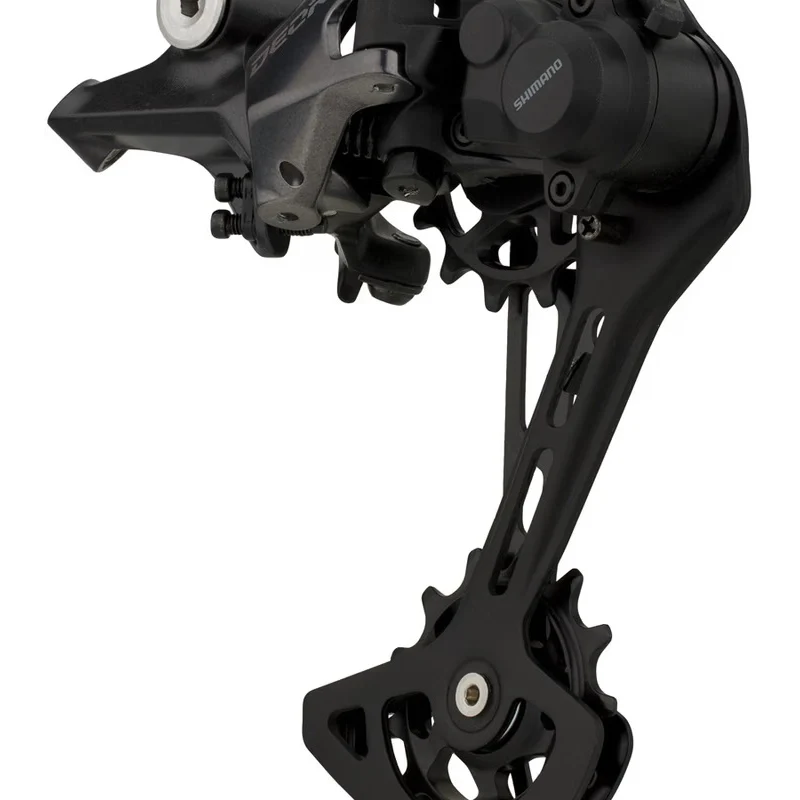

The Shimano Deore RD-M6100 rear derailleur was designed exactly for 12-speed cassettes with a graduation of 10-51 teeth. In 1x drivetrains, it ensures smooth and reliable gear changes with its 13-tooth derailleur pulleys. It features Shadow+ clutch technology, where a stabilizer counteracts chain sag, slap and drop. RD-M6100 is mounted via a standard derailleur hanger and cannot be mounted directly.


SPECIFICATIONS

Series: Deore M6100
Application: All Mountain, Cross Country, Enduro
Gearing: 12-speed
Mount: Standard
Capacity: 41-tooth
Compatibility: Shimano MTB 12-speed
Compatibility - Chains: HG 12-speed


TECHNICAL INFORMATION

Derailleur Pulleys: 13-tooth
Outer Cage Material: Steel
Inner Cage Material: Steel
Other Materials: Aluminium, stainless steel, steel, composite material (GFRP)



COMPATIBILITY

MTB 1 X 12 SPEED
Shifter: SL-M9100, SL-M8100, SL-M7100, SL-M6100
Cassette: 10-51 t: CS-M9101-12, CS-M9100-12, CS-M8100-12, CS-M7100-12, CS-M6100-12
Chain: CN-M9100, CN-M8100, CN-M7100, CN-M6100


FEATURES

- fast and precise shifting for modern mountain bikes
- low-noise drivetrain in all switching positions
- reduced tension of rear derailleur and chain in low gears
- larger 13 t sprockets
- compact profile limits damage from rocks and roots
- chain stabilizer (Shadow+) against chain drops, chain slaps and noise
- painted cage plates
- 7 pivot bushings, fluorine-coated


TECHNOLOGY

Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano's Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.


MODEL SPECIFICATIONS

Cage Length: SGS
Max. Largest Sprocket Teeth: 51-tooth
Min. Largest Sprocket Teeth: 51-tooth
Max. Smallest Sprocket Teeth: 10-tooth
Min. Smallest Sprocket Teeth: 10-tooth
Max. Chainring Difference: 0-tooth
Total Capacity: 41-tooth
