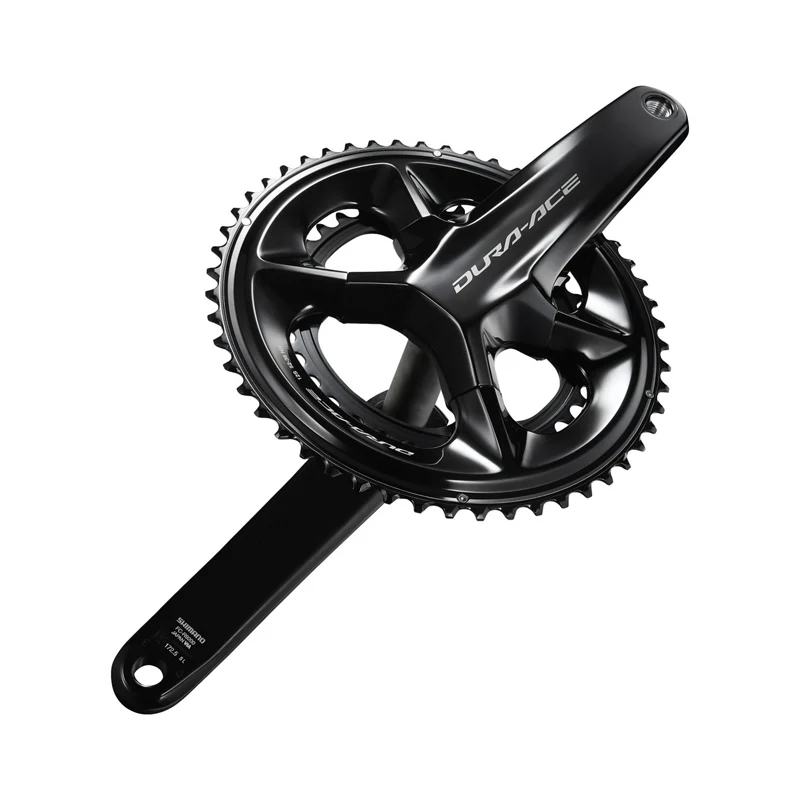

The DURA-ACE FC-R9200 crank performs two vital functions: transferring your pedaling effort into the drivetrain and ensuring the fastest, most precise front shifting available. With HOLLOWTECH II crank arms to ensure light weight and Shimano's class-leading chainring designs, the FC-R9200 won't let you down. The FC-R9200 is offered in even shorter crank arms lengths to offer fit options for any rider.


FEATURES

Optimal balance of stiffness, strength, weight and rotational performance

HOLLOWGLIDE structure cuts weight yet maintains strength for better power transfer and quicker, more precise front shifting


SPECIFICATIONS

Model No: FC-R9200
Series: DURA-ACE
Rear speeds: 12
Compatible chain: HG 12-speed
Chain line (mm): 44.5
P.C.D. (mm): 110
Spider/gear arms: 4
Chainring combination: 52-36T
Q-factor (mm): 148
Optional chain guard without chain/bash guard
HOLLOWTECH II
HOLLOWTECH crank arm
HOLLOWGLIDE
Compatible bottom bracket type: Outboard
Recommended bottom bracket: Threaded (normal) - BB-R9100; Press-Fit - SM-BB92-41B
Threaded bottom bracket shell width (mm): 68, 70,
Crank fixing screw included
