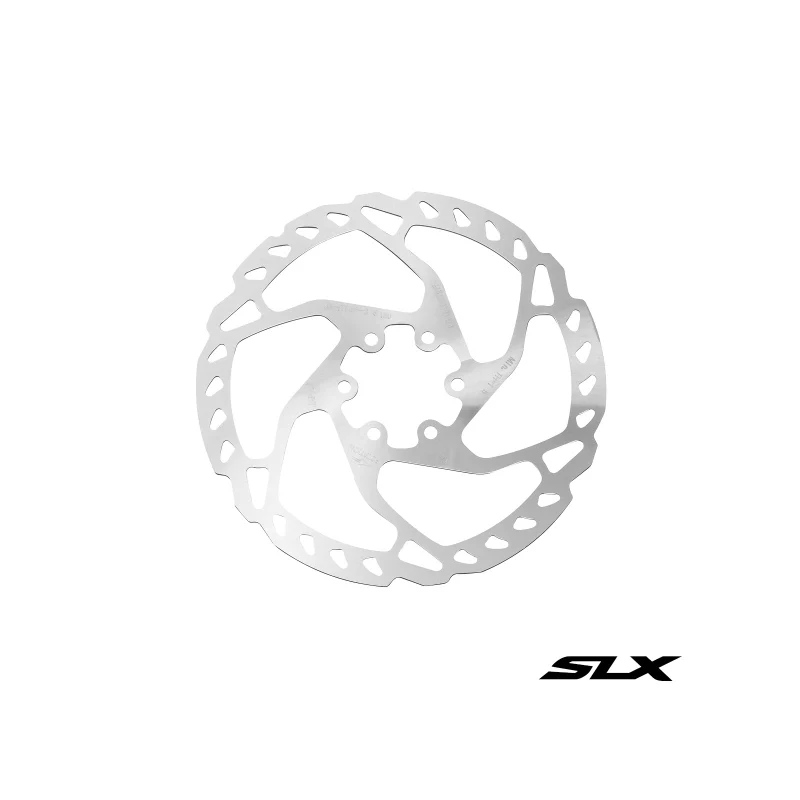

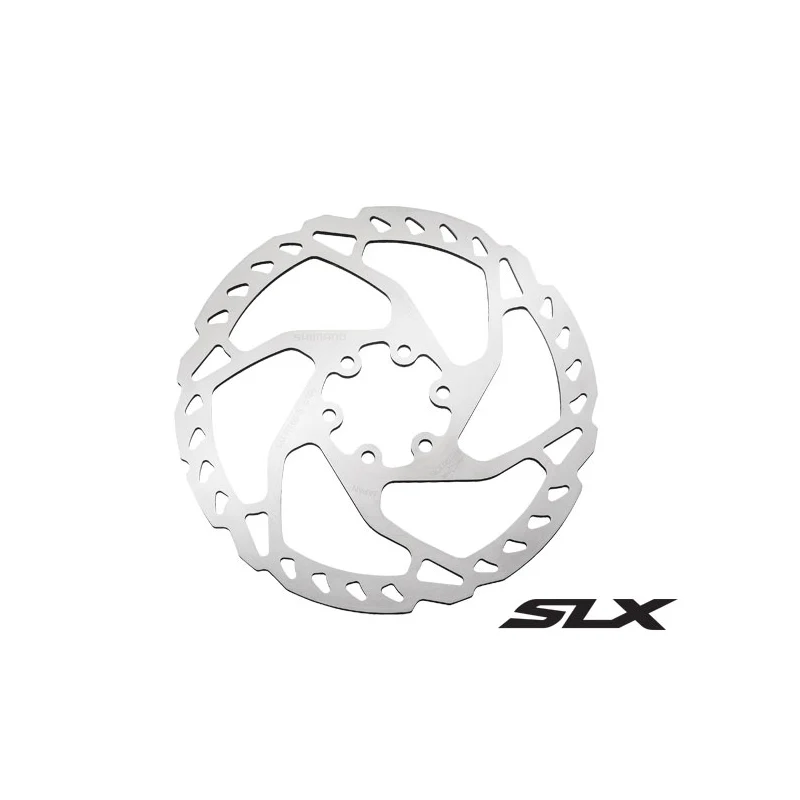

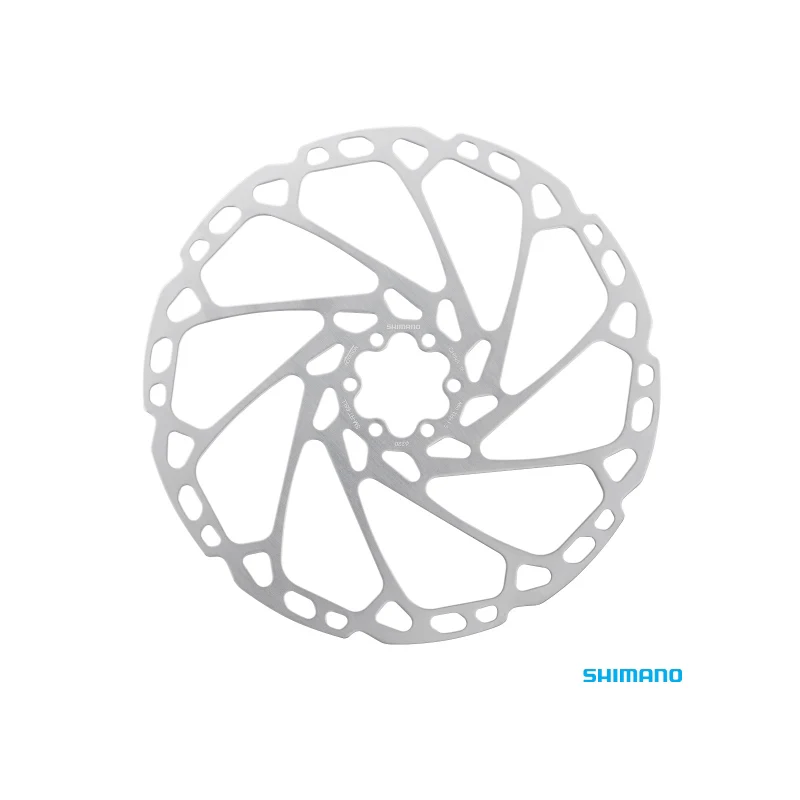

The SM-RT66 Brake Rotor by Shimano - One-piece 6-bolt model

The SM-RT66 is an affordable Shimano 6-bolt brake rotor available in diameters from 160 to 220 mm. It is made of stainless steel, has a one-piece design and is compatible with organic as well as sintered pads. The brake rotor is recommended for ZEE, Deore and Alfine, but can also be used with other brakes. The mounting material is included in the scope of delivery.


TECHNICAL INFORMATION

Mount: 6-bolt
Diameter: 160 mm, 180 mm, 203 mm, 220 mm
Design: 1-piece
Rotor Material: Stainless steel


APPROVED FOR: Brake Compatibility:

BR-M9100*, BR-M9120, BR-M9110-R**, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R*, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R*, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-U8000, BR-U8020, BR-S7000, BR-S700, BR-R9270**, BR-R9170*, BR-R8170*, BR-R8070*, BR-R7170*, BR-R7070*, BR-4700*, BR-RS805*, BR-R785*, BR-RS785*, BR-RS505*, BR-RS405*, BR-RX820*, BR-RX820-LE*, BR-RX810*, BR-RX400*, BR-CX77**, BR-R517**, BR-R317*, BR-RS305**, BR-U5000**
Brake Pad Compatibility:
sintered***, organic

* not compatible with 203 and 220 mm (BR-R9170-R also not compatible with 180 mm)
** only 160 mm
*** with BR-S700 and BR-S7000 only organic


COMPATIBILITY

- for brake pads with narrow pad shape


FEATURES

- performance indicator: Select (level 1 out of 3)
- polished
- with self-locking plates
